The Middle Ground That Doesn't Feel Like a Compromise.
The Experience:

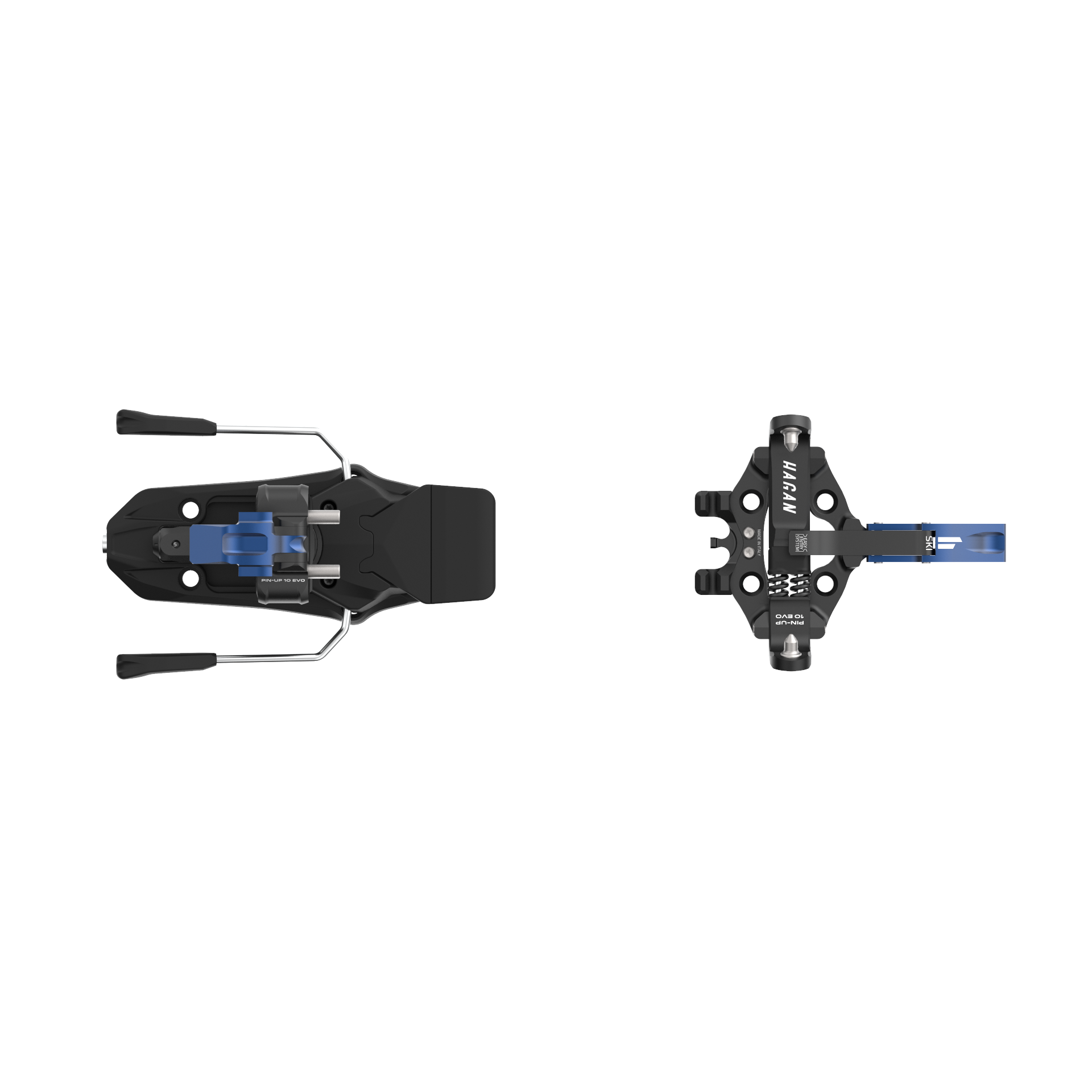

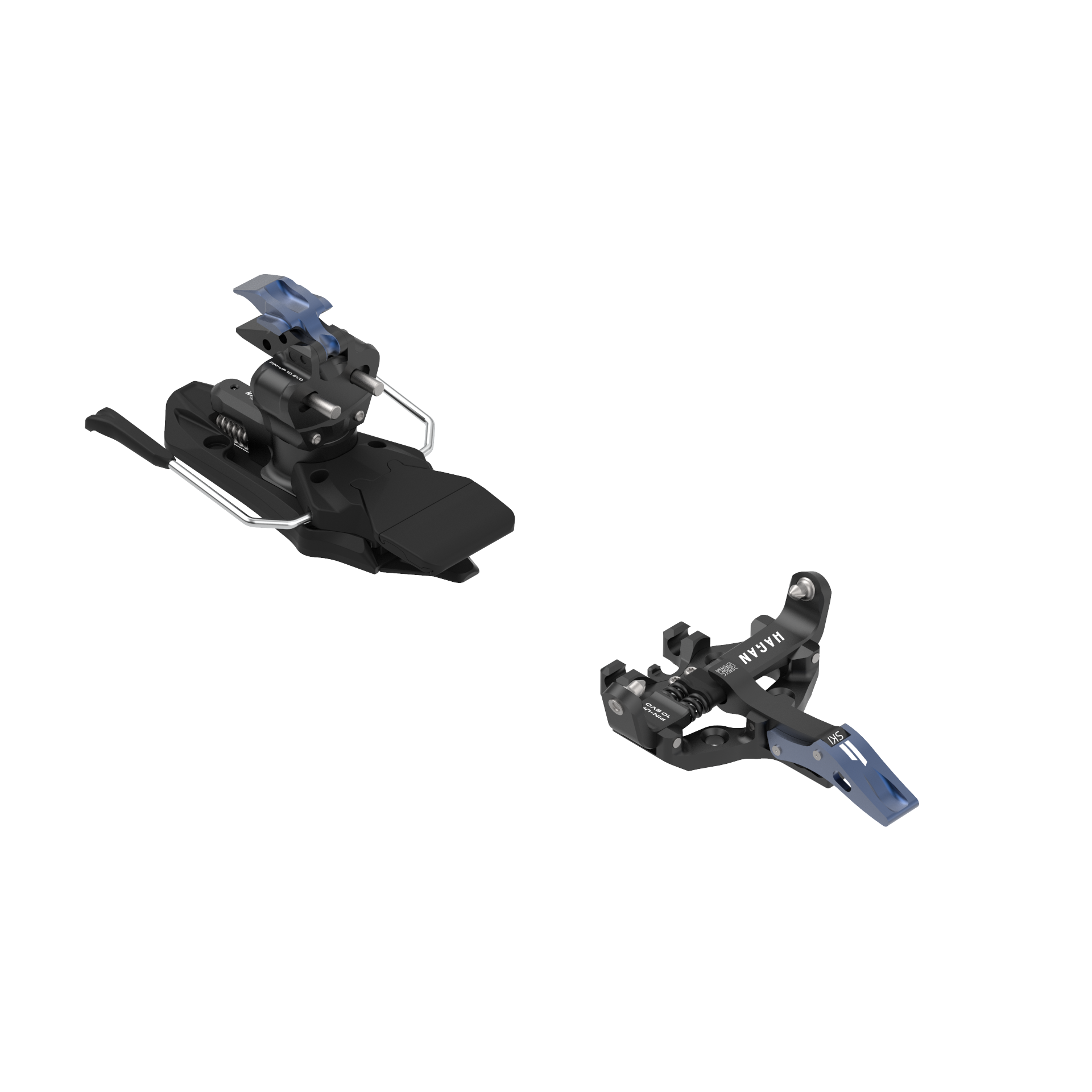

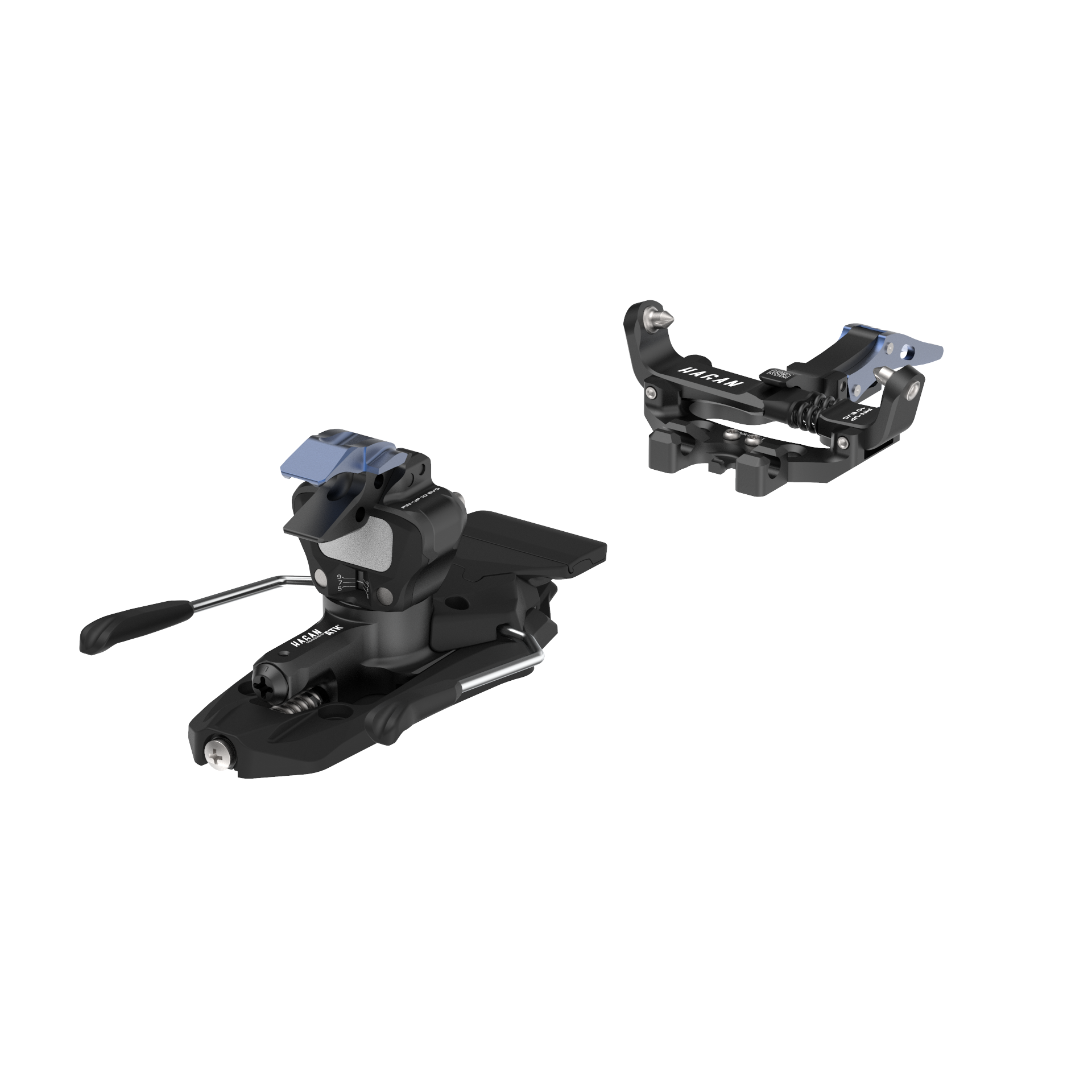

The Pin Up series is HAGAN's all-mountain tech binding sitting squarely between the efficiency-focused Pure series and the power-focused Core FR series, and designed for the modern tourer who wants meaningful downhill capability without paying a significant weight penalty on the skin track. Both versions feature ski crampon slots on the toe piece, a taller heel lift range than the Pure series (flat, +34mm, +50mm) for steep and sustained climbs, and brake widths up to 120mm for compatibility with wider all-mountain and freeride-oriented skis. The Pin Up 10 EVO covers the full all-mountain range with release values up to DIN 12 and the complete brake width selection, making it the more versatile of the two and the natural choice for skiers mounting wider skis or who ski more aggressively on the descent. At 295g both versions sit only marginally heavier than the Pure series, a weight that is easy to justify given the meaningfully elevated downhill performance and broader ski compatibility they deliver in return.
Technical Specifications:
- Weight: 295g
- Walking Modes: Flat, +34mm, +50mm
- Release Value: DIN 5–12
- Adjustment Length: 20mm
- Brake Widths: 86, 91, 97, 102, 108, 120mm or none.
- Material: Aluminum alloy, POM, stainless steel
- Crampon Slot: Included on toe piece
Ideal For:
All-mountain tourers who want elevated downhill retention and broader ski compatibility without stepping up to a dedicated freeride binding. Skiers mounting wider Core Carbon or Boost skis who want a binding that keeps pace with more aggressive skiing without the weight of the Core FR series. Tourers who ski varied terrain and conditions and want a single binding that handles everything the mountain offers.
Best Paired With:
Pin Up 10 EVO pairs naturally with the Core Carbon series across all widths and the Boost 94 for all-mountain freeride use. Pin Up 8 EVO is best suited to the Pure series and narrower Core Carbon models.
